Wisycom MCR 54 Receiver

Description

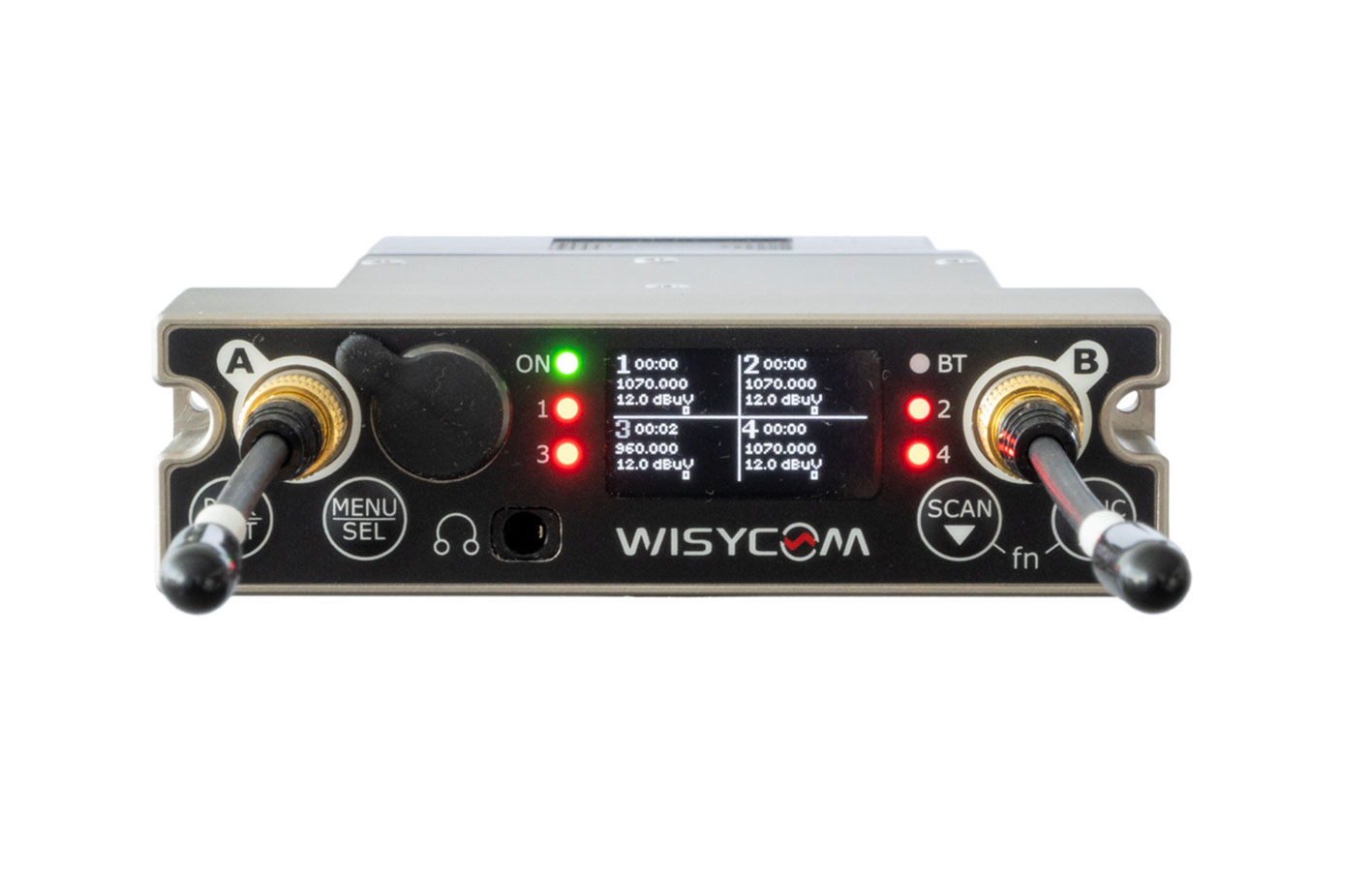

Wisycom MCR54 4 Channels Multiband True Diversity Receiver
is a camera quadruple true diversity wireless microphone receiver system in a modular stand alone or slot in configuration. It’s compatible with most camera’s slots and “multi-slot” mixer accessories.

Four channels True Diversity receiver (8 Receiver boards!)
Exceptional compactness and high robustness
DSP Analogue & Digital Audio Output (AES3)
Up to 790 MHz bandwidth in 470/1260 MHz range

Q electronically tunable filter in 470-800 Mhz
– st narrowband filter
– 2nd narrowband filter

Wideband and Narrowband DSP-FM operation (SW selectable):

Narrowband allows more 50% band efficiency
Narrowband allows about 3dB extra sensitivity and noise immunity

Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
High contrast OLED display

Automatic scan & transmitter programming through infrared and Bluetooth 5 long range
DSP based for extreme flexibility and multi-companding operations
Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager 2.0 (computer SW)
Rear antenna connectors and micro audio and power adapter
