Sound Devices 970 – 64 Track

Description

Sound Devices model 970 is a robust, 64-track Dante and MADI equipped multi-track audio recorder. The half rack, 2U device simplifies applications requiring high-track-count, high-quality audio recordings.

MADI and Dante
The 970 records 64 channels of monophonic or polyphonic 24-bit, 48 kHz WAV files from any of its 144 available input connections.

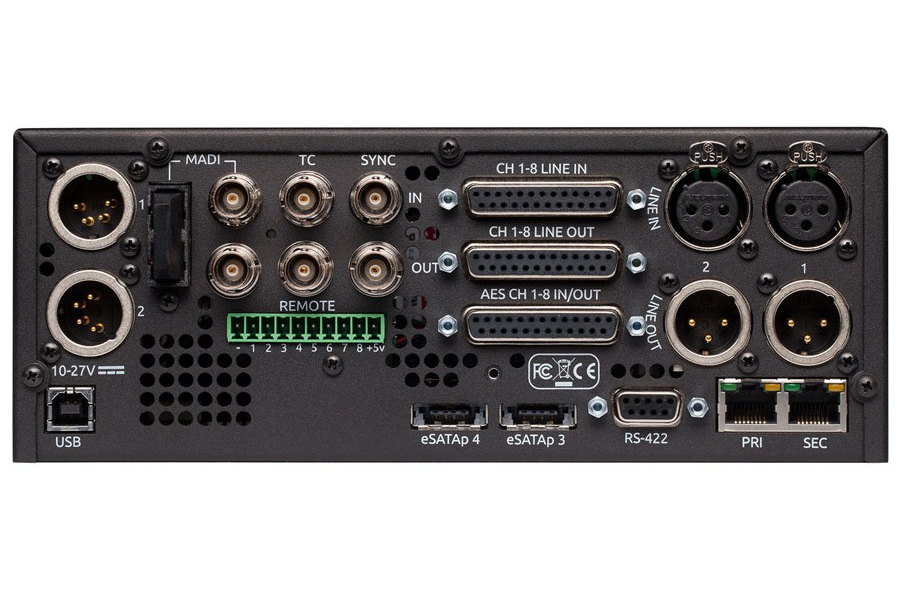

Connections include 64 channels of Ethernet-based Dante, 64 channels of optical or coaxial MADI, eight channels of line-level analog, and eight channels of AES digital. Any input can be assigned to any track. 32-track recording at 96 kHz is supported.
Simultaneous Multi-Drive Recording

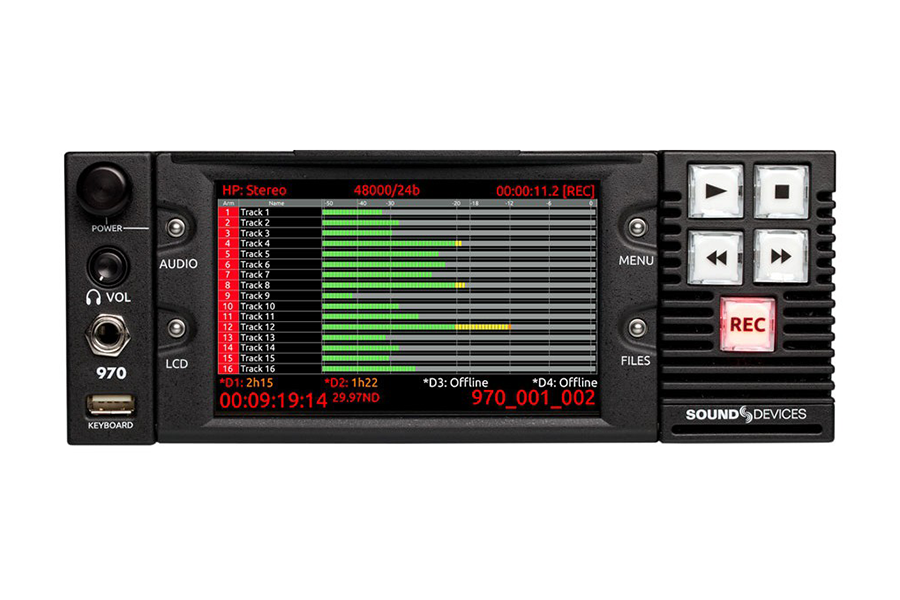

The 970 records to any of four attached drives, two front-panel drive bays and two rear-panel e-SATA connected drives. With four available drives, material can be recorded to multiple drives simultaneously for simultaneous backups, eliminating time-consuming post-record copying. Drives can also be set to record sequentially, allowing continuous long form, high-track count recordings.
Perfect Sync
With its built-in, rock-steady Ambient timecode generator, the 970 can operate as either the master clock or it can be jammed to external devices cameras and other sources. All common production time code rates and modes are supported. The 970 also supports clock synchronization from external word clock, video, MADI, or AES. To simplify connection of multiple digital inputs, SRC’s are available at each input.
