Wisycom MPR 52 Receiver

MPR52-ENG Two Channels – UltraWide Band Receiver

30,50 € day price incl. VAT25,00 € day price excl. VAT

-
+

Description

MPR52-ENG Two Channels – UltraWide Band Receiver

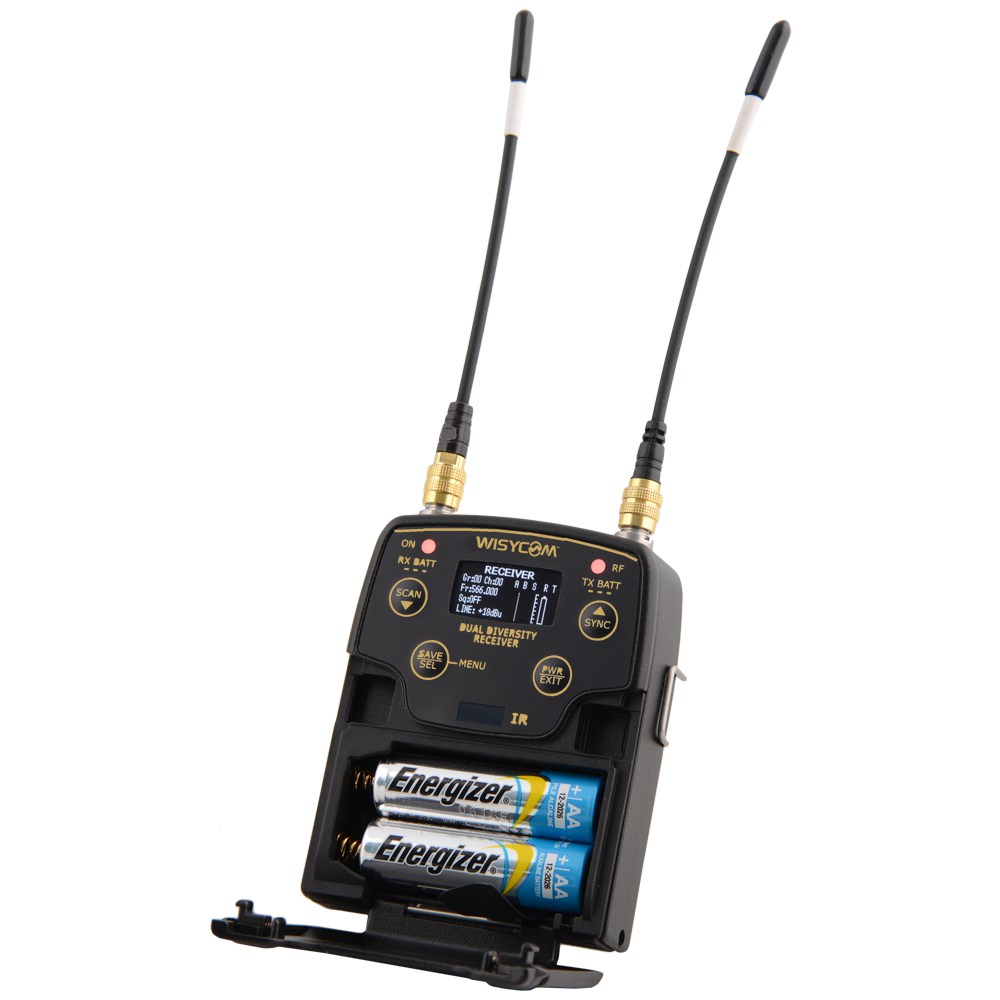

MPR52-ENG is a compact two channels receiver designed for professional ENG applications.
The MPR52 has two built-in diversity receivers with both analogue and digital outputs. With up to 790 MHz bandwidth in the 470/1260 MHz range, the MPR52 features next generation multiband front-end filtering.

The software selectable wideband and narrowband DSP-FM operation gives users options based on their project needs.

The receiver also offers convenient function buttons, including a dedicated frequency scan option.
Battery management is flexible as it features standard battery packs that can be charged with the dedicated charger or through the micro-usb-B connector.

Features:

  • Two channels diversity receiver
  • DSP Analogue & Digital Audio Output (AES3)
  • Up to 790 MHz bandwidth in 470/1260 MHz range
  • Next Gen Multiband front-end filtering:
  • High Q moving filter in 470-960 MHz
  • High Q moving filter in 960-1160 MHz (DME)
  • Country specific saw filters: USA 940-960 MHz & Japan 1240-1260 MHz
  • Wideband and Narrowband DSP-FM operation (SW selectable):
  • Narrowband allows more 50% band efficiency
  • Narrowband allows about 3dB extra sensitivity and noise immunity
  • Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
  • High contrast OLED display
  • Automatic scan & transmitter programming through infrared
  • DSP based for extreme flexibility and multicompanding operations
  • Miniature design with integrated battery pack
  • 2 x AA batteries

For more informations please visit the product Web Page
