K Array – KR 102

Description

The K-array Research and Development, Engineering and Manufacturing divisions have developed three new integrated, self-powered speaker systems, featuring Mid- Hi line array elements matched to powered Subwoofers.

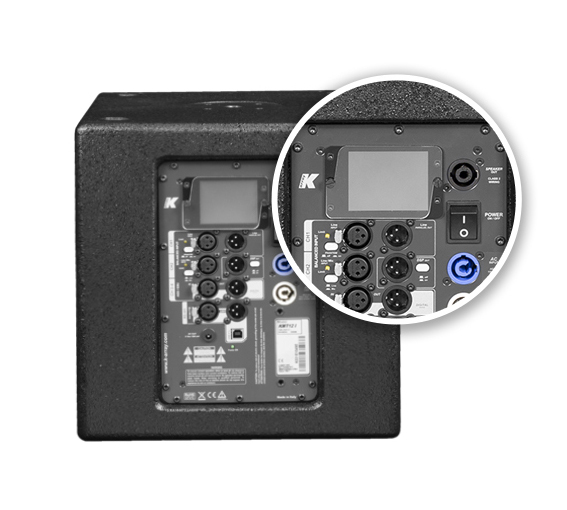

All the systems feature two channels of amplification, housed in the subwoofer. The rear panel provides input for a balanced line signal, a balanced microphone signal with phantom power, and digital signals in protocol, also on an XLR for ease of cabling.
An integrated provides intuitive managing and editing of powerfull controlling:
Input and output levels, internally generated test signal
In/Out routing, speakon output delay (up to 12 ms.), subwoofer delay (up to 12 ms.), overall system delay (up to 330 ms.) All DSP functions, including EQ can be controlled with remote managing software via or, again conveniently on a standard XLR.There are 40 different DSP preset slots available, part of which specifically made by K-array to optimize the system performance of the variety of device configurations available.
In addition the user can also create, save, store and recall his/her own personal presets on the module. The unique four-corner port configuration gives symmetrical back loading to the speaker for extended bass response with very low distortion. This also gives incredible structural strength to the cabinet despite its light weight. Pocket handles and an M20 thread mount position for attaching mid-high speakers, with a variety of mounting and rigging hardware options make the latest additions to the K-array Redline Series very versatile in almost any application and in every type of venue.

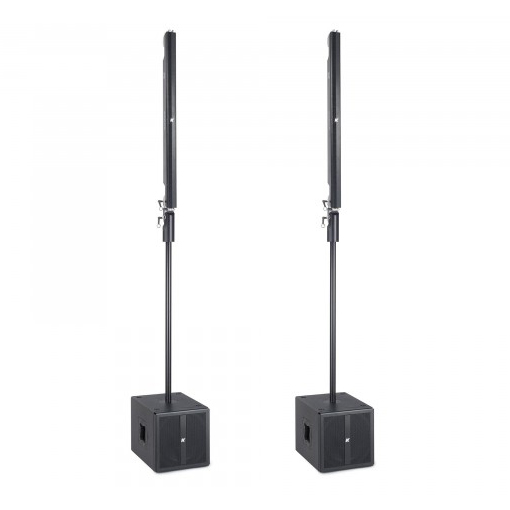

KR102 features a pair of KMT12 (12”) subs each with 2 channels of 1,000 Watts matched to a KK102 with 16 x 2” Neodymium speaker elements.
All Redline systems are designed by the K-array R&D department and custom-made under the K-array quality control system.Theatre, Club, Houses of Worship Front fill and under-balcony fill Portable and installed AV systemsStage and AV studio monitoring
